Mouse monoclonal antibody to SARS-CoV2 (ACE2 binding domain) (Clone:5G8)

Fig 1: Immunofluorescent analysis of HEK293 cells transfected with pCI-Neo-Mod vector (5) including SARS-CoV2-bd cDNA and stained with mouse mAb to SARS-CoV2-bd, with dilution 1:1,000, in red. The blue is Hoechst staining of nuclear DNA. This antibody reveals expression of SARS-CoV2-bd protein only in transfected cells. DAPI reveals the nuclear DNA of both transfected and non-transfected cells.

Mouse monoclonal antibody to SARS-CoV2 (ACE2 binding domain) (Clone:5G8)

Roll over image to zoom in

Fig 1: Immunofluorescent analysis of HEK293 cells transfected with pCI-Neo-Mod vector (5) including SARS-CoV2-bd cDNA and stained with mouse mAb to SARS-CoV2-bd, with dilution 1:1,000, in red. The blue is Hoechst staining of nuclear DNA. This antibody reveals expression of SARS-CoV2-bd protein only in transfected cells. DAPI reveals the nuclear DNA of both transfected and non-transfected cells.

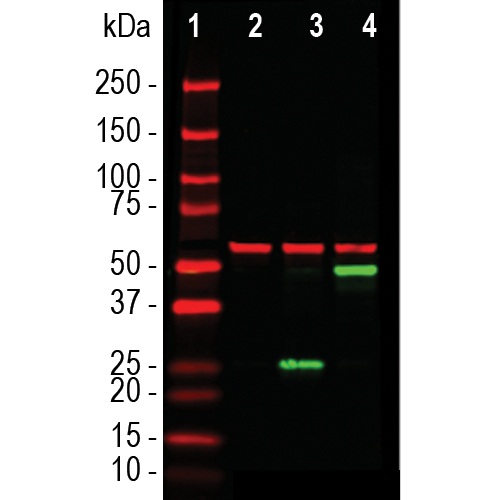

Fig 2 :-Western blot analysis of HEK293 cell lysates using mouse mAb to SARS-CoV2-bd protein, with dilution 1:3,000 in green: [1] protein standard, [2] non-transfected cells, [3] cells transfected with pCI-Neo-Mod containing the SARS-CoV2-bd cDNA, and [4] cells transfected with pCI-Neo-GFP vector expression construct containing containing the SARS-CoV2-bd cDNA. The band at 25kDa mark in the transfected cells demonstrates expression of SARS-CoV-bd protein, and the band at about 50kDa corresponds to a GFP-SARS-CoV2-bd fusion protein. The same blot was simultaneously probed with rabbit pAb to HSP60, RPCA-HSP60, dilution 1:5,000, in red, revealing a single band at 60kDa in both transfected and non-transfected cells.

Product code: 34-1135

Clone name :	5G8
Clonality :	Monoclonal
Application :	ICC/IF, IHC, WB

Shipping Info:

For estimated delivery dates, please contact us at [email protected]

Download TDS MSDS

Write a review for this product on BioCompare

Get $20 gift card from Amazon

Shipping Info:

For estimated delivery dates, please contact us at [email protected]

Download TDS MSDS

Format :	Purified
Amount :	100 µL
Isotype :	IgG1
Content :	Purified antibody at 1mg/mL in 50% PBS, 50% glycerol plus 5mM NaN3
Storage condition :	Shipped on ice. Store at 4°C for short term, for longer term at -20°C. Avoid freeze / thaw cycles.
AA sequence :	MHHHHHHSSG LVPRGSGMKE TAAAKFERQH MDSPDLGTDD DDKAMADIGS EFVEKGIYQT 60 SNFRVQPTES IVRFPNITNL CPFGEVFNAT RFASVYAWNR KRISNCVADY SVLYNSASFS 120 TFKCYGVSPT KLNDLCFTNV YADSFVIRGD EVRQIAPGQT GKIADYNYKL PDDFTGCVIA 180 WNSNNLDSKV GGNYNYLYRL FRKSNLKPFE RDISTEIYQA GSTPCNGVEG FNCYFPLQSY 240 GFQPTNGVGY QPYRVVVLSF ELLHAPATVC GPKKSTNLVK NKCVNF 286 Number of amino acids: 286 Molecular weight: 32074.01


Uniprot ID :	P0DTC2
Immunogen Information :	Recombinant SARS-CoV2 S-Protein ACE2 binding domain expressed in and purified from E. coli.

This antibody was raised against a recombinant construct of the SARS-CoV2 spike or S-protein which includes the entire region which interacts with ACE2. The specific binding to ACE2 is essential for viral internalization and infection. We designed this construct based on amino acids 308-541 in the S-protein sequence in Isolate Wuhan-Hu-1, complete genome. This is a defined globular domain recently shown to include all of the amino acids necessary for ACE2 binding. The construct was expressed in and purified from E. coli and includes an N-terminal His-tag and other vector derived sequence shown underlined below. Amino acids which interact directly with the ACE2 protein are printed in bold.

WB: 1:1,000-1:2,000. ICC/IF: 1:3,000-5,000

For Research Use Only. Not for use in diagnostic/therapeutics procedures.
