Monoclonal Antibody to Spectrin beta 3 (Clone: ABM5A16)

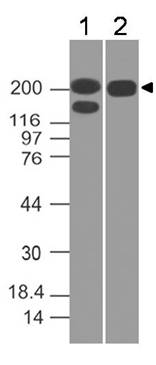

Figure-1: Western blot analysis of Spectrin beta 3. Anti-Spectrin beta 3 antibody (Clone: ABM5A16) was used at 0.1 µg/ml on h Kidney and h Brain lysates.

Monoclonal Antibody to Spectrin beta 3 (Clone: ABM5A16)

Roll over image to zoom in

Figure-1: Western blot analysis of Spectrin beta 3. Anti-Spectrin beta 3 antibody (Clone: ABM5A16) was used at 0.1 µg/ml on h Kidney and h Brain lysates.

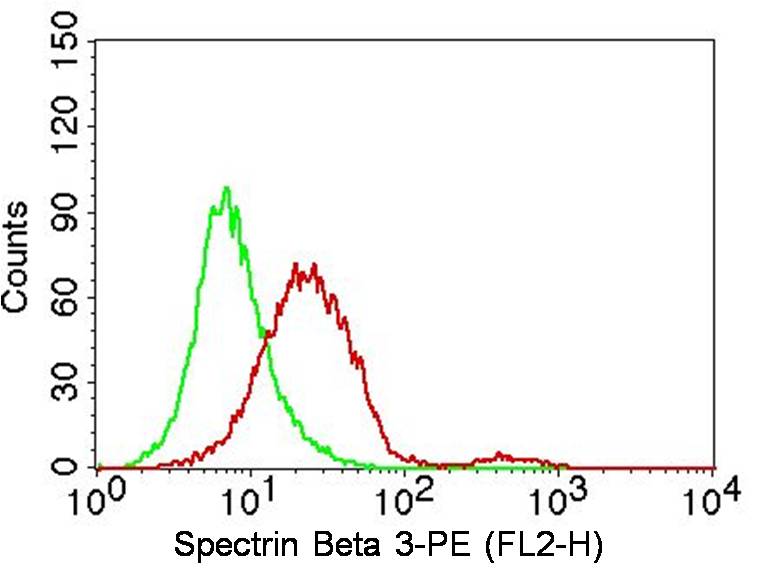

Figure-2: Intracellular flow analysis of human Spectrin beta 3 in A431 cells using 2 µg/10^6 cells of antibody (Clone: ABM5A16). Green represents isotype control; red represents anti-Spectrin beta 3 antibody. Goat anti-mouse PE conjugate was used as secondary antibody. (Cells were fixed with 4% paraformaldehyde for 10 min and washed with PBS by centrifuging at 1100 for 5 min followed by permeabilization for 20 min and washed again as mentioned above. Then cell were incubated with primary antibody for 45 min. and after washing the cells twice in PBS, incubated with conjugated secondary antibody for 30 min. Data acquisition was done after washing twice with PBS as mentioned above).

Figure-3: Intracellular flow analysis of human Spectrin beta 3 in HeLa cells using 2 µg/10^6 cells of antibody (Clone: ABM5A16). Green represents isotype control; red represents anti-Spectrin beta 3 antibody. Goat anti-mouse PE conjugate was used as secondary antibody. (Cells were fixed with 4% paraformaldehyde for 10 min and washed with PBS by centrifuging at 1100 for 5 min followed by permeabilization for 20 min and washed again as mentioned above. Then cell were incubated with primary antibody for 45 min. and after washing the cells twice in PBS, incubated with conjugated secondary antibody for 30 min. Data acquisition was done after washing twice with PBS as mentioned above).

Product code: 10-7590

Clone name :	ABM5A16
Clonality :	Monoclonal
Application :	FACS, WB
Reactivity :	Human

Shipping Info:

Order now and get it on Tuesday November 26, 2024

Download TDS MSDS

Write a review for this product on BioCompare

Get $20 gift card from Amazon

Shipping Info:

Order now and get it on Tuesday November 26, 2024

Same day delivery FREE on San Diego area orders placed by 1.00 PM

Download TDS MSDS

Format :	Purified
Amount :	100 µg
Isotype :	Mouse IgG2a, kappa
Purification :	Protein G Chromatography
Content :	25 µg in 50 µl/100 µg in 200 µl PBS containing 0.05% BSA and 0.05% sodium azide. Sodium azide is highly toxic.
Storage condition :	Store the antibody at 4°C, stable for 6 months. For long-term storage, store at -20°C. Avoid repeated freeze and thaw cycles.


Gene :	SPTBN2
Gene ID :	6712
Uniprot ID :	O15020
Alternative Name :	Spectrin beta chain, non-erythrocytic 2, Beta-III spectrin, Spinocerebellar ataxia 5 protein
Immunogen Information :	A partial length recombinant protein (a.a 1280-1450) of Spectrin beta 3 was used as the immunogen for this antibody.

Beta-III spectrin is a protein encoded by the gene SPTBN2, spans 2390 amino acids and consists of an amino-terminal actin binding domain (ABD), a central region containing seventeen spectrin repeat domains, and a carboxy-terminal pleckstrin homology domain. It is critical for the correct development and maintenance of Purkinje cell dendritic structure. Beta-III spectrin is expressed predominantly in the brain and is enriched in cerebellar Purkinje cells. In addition, Beta-III spectrin participates in endomembrane trafficking through its interaction with the actin related protein, ARP1. The functional unit of Beta-III spectrin is considered to be a tetrameric complex composed of two Beta-spectrin subunits and two Alpha-II-spectrin subunits. Mutations in the gene encoding Beta-III spectrin give rise to spinocerebellar ataxia type 5, a neurodegenerative disease characterized by progressive thinning of the molecular layer, loss of Purkinje cells and increasing motor deficits.

WB: 0.1-0.5 µg/ml, FACS: 2-4 µg/10^6

For Research Use Only. Not for use in diagnostic/therapeutics procedures.

Subcellular location:	Cytoplasm, Cytoplasm
Tissue Specificity:	Highly expressed in brain, kidney, pancreas, and liver, and at lower levels in lung and placenta.
BioGrid:	112590. 34 interactions.
