Anti-hTNFR1 VHH antibody

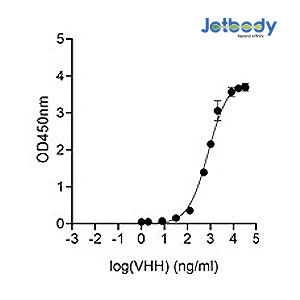

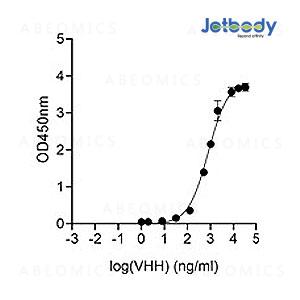

Figure 1: Indirect ELISA showing anti-TNFR1 VHH antibody (JOT0005-1) binding to purified PD-L1. Plates were coated with 200ng/well purified protein and binding of JOT0005-1 assessed in serial dilution from 1ng/ml primary antibody in triplicate.

Roll over image to zoom in

Figure 1: Indirect ELISA showing anti-TNFR1 VHH antibody (JOT0005-1) binding to purified PD-L1. Plates were coated with 200ng/well purified protein and binding of JOT0005-1 assessed in serial dilution from 1ng/ml primary antibody in triplicate.

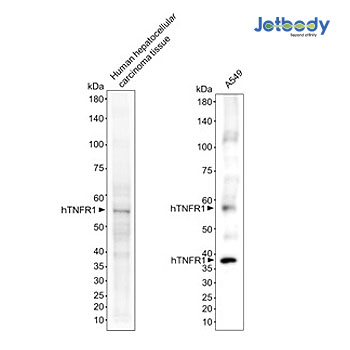

Figure 2: Lysates of human hepatocellular carcinoma tissue and A549 cells were repectively subjected to SDS- PAGE followed by western blot with anti-TNFR1 VHH antibody (JOT0005-1) at dilution of 1:3000 incubated at room temperature for 1.5 hours.

Figure 3: Immunohistochemical analysis of paraffin-embedded human lung carcinoma tissue slides using anti-TNFR1 VHH antibody (JOT0005-1) at 2.5ug/ml and positive control (TNFR1 monoclonal antibody, a competitor product) at 1:200 dilution (under 20x lens), respectively. Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0).

Figure 4: Immunofluorescence analysis of paraformaldehyde fixed MCF-7 cells stained with anti-TNFR1 VHH antibody (JOT0005-1) at
2.5 µg/ml followed by CoraLite® 488 secondary antibody at 1:200 dilution, showing cytoplasmic staining (under 40x lens). The nuclear stain is DAPI (blue). The isotype control was stained with anti-unknown antibody followed by CoraLite® 488 secondary antibody (under 20x lens).

Product code: JOT0005-1

Clonality :	Monoclonal
Application :	ELISA, IHC, WB, IF
Reactivity :	Human

Shipping Info:

For estimated delivery dates, please contact us at [email protected]

Download TDS / Manual

Write a review for this product on BioCompare

Get $20 gift card from Amazon

Shipping Info:

For estimated delivery dates, please contact us at [email protected]

Download TDS / Manual

Amount :	50 µg
Isotype :	Camelid VHH
Purification :	Affinity chromatography purified via Ni-charged resin. Purity: > 95% as determined by SDS-PAGE
Content :	1mg/mL Buffer25 mM TAPS pH8.5, 500 mM NaCl, 5 mM EDTA, 0.09 % NaN3
Storage condition :	4°C; Do not freeze.


Gene :	TNFRSF1A
Gene ID :	7132
Uniprot ID :	P19438
Alternative Name :	TNFR-1,Â TNFR1, P55, P60, CD120A, Tumor necrosis factor receptor 1

Alpaca derived anti-TNFR1 VHH single domain antibody (molecular weight: 14.6 kDa) with a 6*His tag at its C-terminal, expressed in E. coli under conditions free from animal derived components.

Tumor necrosis factor receptor 1 (TNFR1), also known as tumor necrosis factor receptor superfamily member 1A (TNFRSF1A) and CD120a (cluste of differentiation 120a), is an ubiquitous membrane receptor that binds tumor necrosis factor-alpha (TNFAlpha). It has been shown to be localized to both plasma membrane lipid rafts and the trans golgi complex with the help of the death domain (DD). TNFR1 can activate the transcription factor NF- kB, mediate apoptosis, and regulate inflammation processes.

This is a product from Jotbody, Hong Kong. This antibody is made available worldwide by ABEOMICS Inc.

Positive controls Positive ELISA detected in: recombinant human tumor necrosis factor receptor 1 Positive WB detected in: human hepatocellular carcinoma tissue Positive IHC detected in: human lung carcinoma tissue Positive IF detected in: MCF-7 cells
Recommended dilutions ELISA 1:1000-1:10000 WB 1:500-1:3000 IHC 1:100-1:300 IF 1:100-1:300

For Research Use Only. Not for use in diagnostic/therapeutics procedures.
